• Wheels, 4 - 17" x 7.5" (43.2 cm x 19.1 cm) aluminum, 5-spoke, with smooth surface and rectangular pockets (Not available with (Z71) Off-Road Suspension Package.)
• Tires, P265/70R17 all-season, blackwall (Not available with (Z71) Off-Road Suspension Package.)
• Wheel, 17" (43.2 cm) full-size, steel spare
• Tire, spare P265/70R17 all-season, blackwall (Upgradeable to SEO (4JP) P265/70R17 on-/off-road, blackwall spare tire.)
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Luggage rack side rails, roof-mounted, Black
• Luggage rack center rails, roof-mounted, Black
• Fascia, front color-keyed
• Fascia, rear color-keyed
• Assist steps, Black (Not available with (Z71) Off-Road Suspension Package.)
• Moldings, color-keyed bodyside
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Fog lamps, front, halogen
• Mirrors, outside heated power-adjustable, manual-folding (Mirror caps are color-keyed.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wiper, rear intermittent with washer
• Door handles, color-keyed
• Liftgate with liftglass, rear door system with rear-window wiper/washer

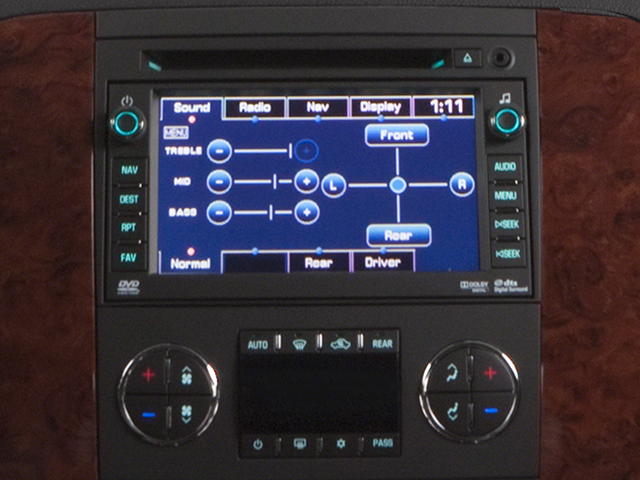

• Audio system, AM/FM stereo with CD player and MP3 playback seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed compensated volume, TheftLock, auxiliary input jack, and USB port (Not available with (PCJ) Sun, Entertainment and Destinations Package.)
• Audio system feature, USB port
• Audio system feature, Bose premium 9-speaker system with subwoofer in center console
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media)
• SiriusXM Satellite Radio is standard on nearly all 2014 GM models. Enjoy a 3-month trial to the XM All Access package, with over 150 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. With All Access, listen to everything, everywhere, in your car and on your computer, smartphone or tablet. (Not available with (UYS) audio system with navigation. IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at sirisusxm.com. Other fees and taxes will apply. All fees and programming subject to change.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface), with specific steering wheel controls (Deleted when (UE0) OnStar, delete is ordered.)

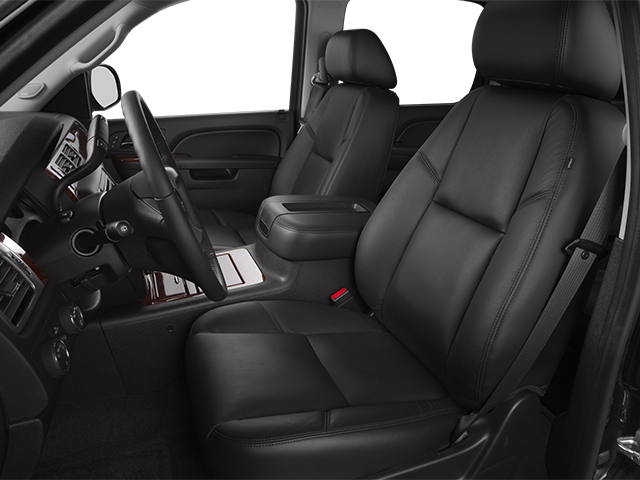

• Seats, front bucket with leather-appointed seating (AG1) 6-way power driver and (AG2) front passenger seat adjusters, adjustable head restraints, driver manual lumbar control, floor console and rear storage pockets

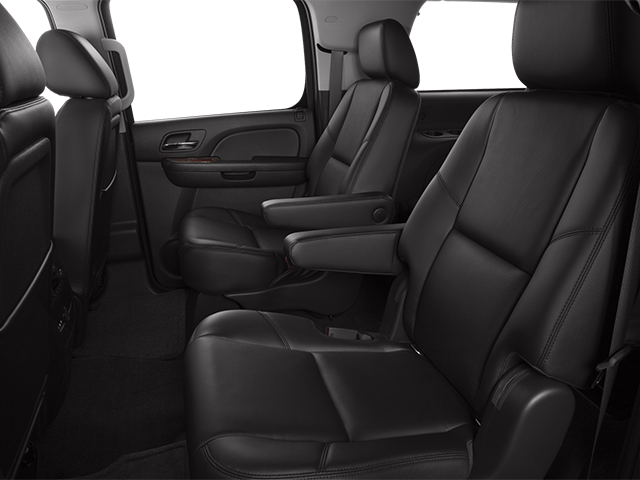

• Seats, second row 60/40 split-folding bench, 3-passenger with center armrest with 2 cup holders
• Seat trim, leather
• Seat adjuster, driver 6-way power
• Seat adjuster, front passenger 6-way power
• Seats, heated, driver and front passenger (Included and only available with (A95) front bucket seats. (AN3) front bucket seats contain integrated seat heaters.)
• Seats, third row 50/50 split-bench, 3-passenger, removable, all-belts-to-seat

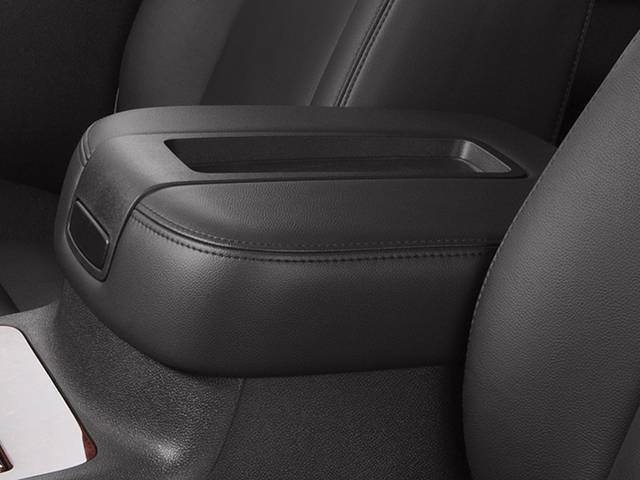

• Console, floor with storage area, cup holders and integrated second row audio controls
• Floor mats, color-keyed carpeted first and second row, removable
• Floor covering, color-keyed carpeting

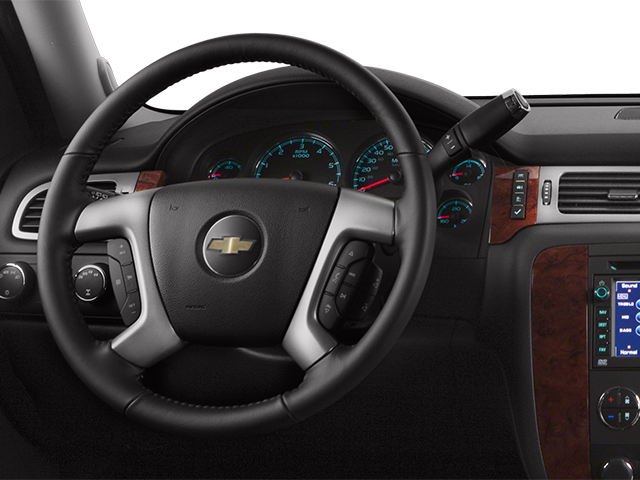

• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio and cruise controls
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on

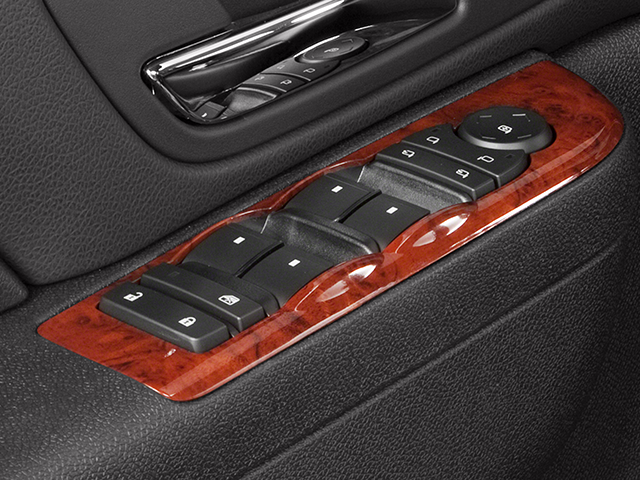

• Windows, power with driver Express-Down and lockout features
• Door locks, power programmable with lockout protection
• Remote vehicle starter system includes Remote Keyless Entry
• Cruise control, electronic with set and resume speed
• Pedals, power-adjustable for accelerator and brake (Includes memory function with (AN3) front bucket seats.)
• Theft-deterrent system, vehicle, PASS-Key III
• Air conditioning, tri-zone automatic climate control with individual climate settings for driver and right front passenger
• Air conditioning, rear auxiliary
• Heater, rear auxiliary with rear passenger heating ducts
• Defogger, rear-window electric
• Power outlets, 5 auxiliary, 12-volt includes 2 on the instrument panel, 1 in the cargo area, 1 inside the center console and 1 at the back of the console
• Mirror, inside rearview auto-dimming with rear camera display
• Headliner, cloth
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod
• Assist handles, front passenger and second row outboard
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions

• StabiliTrak, stability control system with traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) 3-passenger third row bench seat (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance and Turn-by-Turn Navigation". Also, updated footnote 1 to now read "Visit onstar.com for coverage map, details and system limitations. Services vary by model and conditions. (Visit onstar.com for details and system limitations.)
• Rear Vision Camera (Note: images appear on Navigation screen for units equipped with (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation. For units not equipped with Navigation systems images will appear within rearview mirror.)
• Rear Park Assist, with audible warning
• Safety belts, 3-point, driver and front passenger in all seating positions
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Tire Pressure Monitor System air pressure sensors in each tire with pressure display in Driver Information Center (does not apply to spare tire)

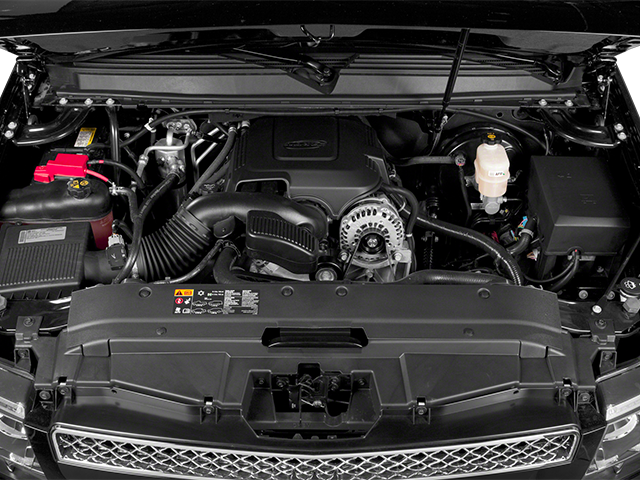

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• with Active Fuel Management
• capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [239 kW] @ 5400 rpm
• 335 lb-ft of torque [454 N-m] @ 4000 rpm
• with E85 ethanol - 326 hp [243 kW] @ 5300 rpm
• 348 lb-ft of torque [472 N-m] @ 4400 rpm)
• aluminum block (STD)

• Engine
• Vortec 5.3L V8 SFI FlexFuel with Active Fuel Management
• capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [239 kW] @ 5400 rpm
• 335 lb-ft of torque [454 N-m] @ 4000 rpm
• with E85 ethanol - 326 hp [243 kW] @ 5300 rpm
• 348 lb-ft of torque [472 N-m] @ 4400 rpm)
• aluminum block (Requires 4WD models.)
• Rear axle
• 3.08 ratio (Not available with (K5L) Heavy-Duty Trailering Package.)
• Suspension Package
• Premium Smooth Ride
• Differential
• heavy-duty locking rear
• 4-wheel drive
• Transfer case
• active
• single-speed
• electronic Autotrac with rotary controls
• does not include neutral. Cannot be dinghy towed. (Requires (GU4) 3.08 rear axle ratio. Not available on 2WD models or with (K5L) heavy-duty trailering package.)
• Battery
• 660 cold cranking amps with 80 amp hour rating
• Alternator
• 160 amps
• Trailering equipment includes trailering hitch platform
• 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and 2" trailering receiver
• GVWR
• 7400 lbs. (3357 kg) (Requires 4WD models.)
• Suspension
• front coil-over-shock with stabilizer bar
• Suspension
• rear multi-link with coil springs
• Steering
• power
• Brakes
• 4-wheel antilock
• 4-wheel disc
• VAC power
• Powertrain grade braking
• Wheel
• 17" (43.2 cm) full-size
• steel spare
• Tire carrier
• lockable outside spare
• winch-type mounted under frame at rear
• Fascia
• front color-keyed
• Fascia
• rear color-keyed
• Moldings
• color-keyed bodyside
• Headlamps
• dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Fog lamps
• front
• halogen
• Glass
• Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wiper
• rear intermittent with washer
• Door handles
• color-keyed
• Liftgate with liftglass
• rear door system with rear-window wiper/washer
• Audio system feature
• Bose premium 9-speaker system with subwoofer in center console
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface)
• with specific steering wheel controls (Deleted when (UE0) OnStar
• delete is ordered.)
• Floor covering
• color-keyed carpeting
• Steering column
• Tilt-Wheel
• adjustable with brake/transmission shift interlock
• Steering wheel
• leather-wrapped

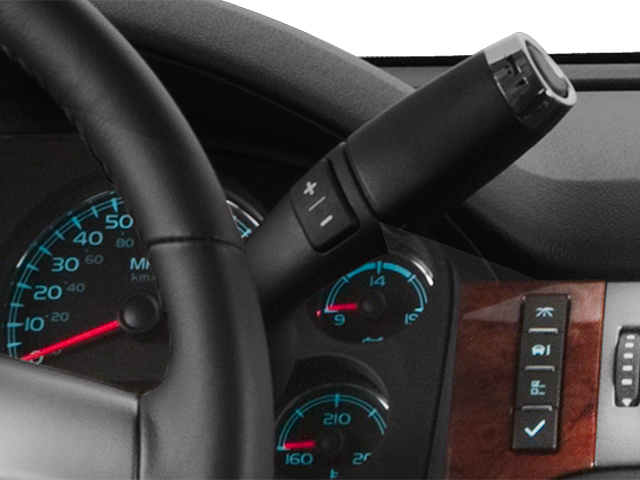

• Instrumentation
• analog with speedometer
• odometer with trip odometer
• fuel level
• voltmeter
• engine temperature
• oil pressure and tachometer
• Warning tones headlamp on
• key-in-ignition
• driver and right-front passenger safety belt unfasten and turn signal on
• Windows
• power with driver Express-Down and lockout features
• Pedals
• power-adjustable for accelerator and brake (Includes memory function with (AN3) front bucket seats.)
• Theft-deterrent system
• vehicle
• PASS-Key III
• Heater
• rear auxiliary with rear passenger heating ducts
• Defogger
• rear-window electric
• Headliner
• cloth
• Visors
• driver and front passenger illuminated vanity mirrors
• padded with cloth trim
• extends on rod
• Assist handles
• front passenger and second row outboard
• Lighting
• interior with dome light
• driver- and passenger-side door switch with delayed entry feature
• cargo lights
• door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• StabiliTrak
• stability control system with traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags
• dual-stage frontal
• driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags
• head curtain side-impact
• first and second row outboard seating positions with rollover sensor
• includes third row seating positions with (AS3) 3-passenger third row bench seat (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags
• seat-mounted side-impact
• driver and right-front passenger for thorax and pelvic protection (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Park Assist
• with audible warning
• Safety belts
• 3-point
• driver and front passenger in all seating positions
• LATCH system (Lower Anchors and Top tethers for CHildren)
• for child safety seats
• Tire Pressure Monitor System air pressure sensors in each tire with pressure display in Driver Information Center (does not apply to spare tire)

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4200
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7400
• Gross Combined Wt Rating (lbs): 11500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Multi link
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 46.0
• Shock Absorber Diameter - Rear (mm): 46.0
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.8
• Tires
• Front Tire Order Code: QAN
• Rear Tire Order Code: QAN
• Spare Tire Order Code: ZRS
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2135
• Rear Tire Capacity (lbs): 2135
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.8
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 130.00
• Length, Overall w/rear bumper (in): 222.40
• Width, Max w/o mirrors (in): 79.10
• Height, Overall (in): 76.80
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 32.60
• Ground Clearance, Front (in): 10.50
• Ground Clearance, Rear (in): 9.10
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 101.80
• Cargo Area Length @ Floor to Seat 2 (in): 69.60
• Cargo Area Length @ Floor to Seat 3 (in): 35.60
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.10
• Cargo Box (Area) Height (in): 41.40
• Cargo Volume to Seat 1 (ft³): 137.4
• Cargo Volume to Seat 2 (ft³): 90.0
• Cargo Volume to Seat 3 (ft³): 45.8
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 41.10
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.50
• Second Head Room (in): 38.50
• Second Leg Room (in): 39.50
• Second Shoulder Room (in): 65.20
• Second Hip Room (in): 61.80
• Third Head Room (in): 38.10
• Third Leg Room (in): 34.90
• Third Shoulder Room (in): 64.70
• Third Hip Room (in): 49.40
• Summary

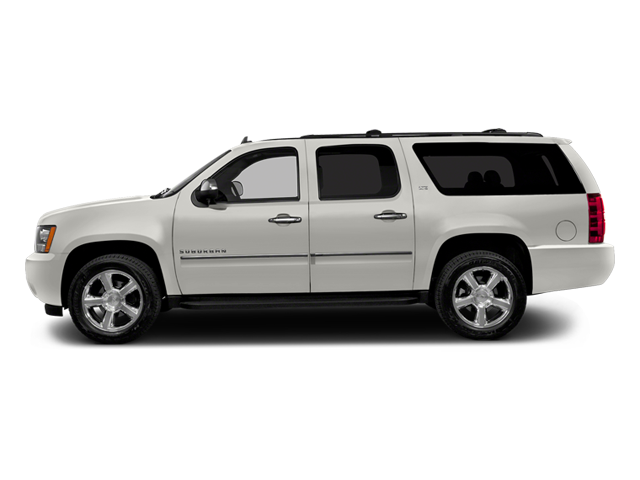

• Vehicle Name: Chevrolet Suburban
• Body Style: Sport Utility Vehicle
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.7
